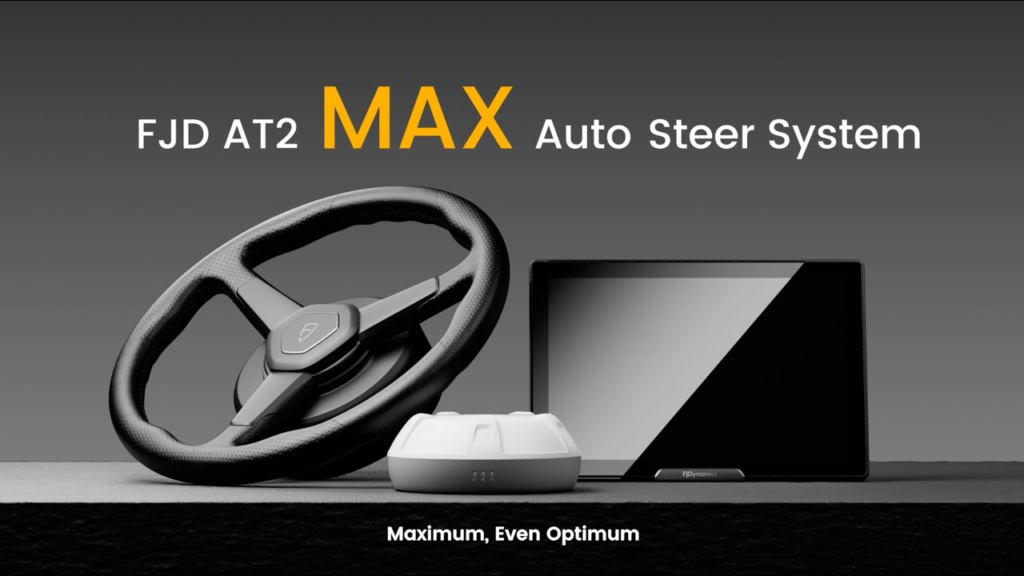

The FJD AT2 Max Auto Steer System: Precision Farming’s New Flagship
Modern agriculture demands precision, efficiency, and the ability to multitask without sacrificing accuracy. The FJD AT2 Max Auto Steer System—the flagship of FJDynamics’ new-generation autosteering solutions—delivers all three with a comprehensive, all-in-one navigation kit designed for farmers who refuse to compromise.
As the successor to the widely successful AT2 (already used in over 30 countries), the AT2 Max represents a significant evolution in agricultural guidance technology . Whether you’re tilling, seeding, spraying, or harvesting, this system is engineered to transform how you work in the field.
At a Glance: Key Specifications

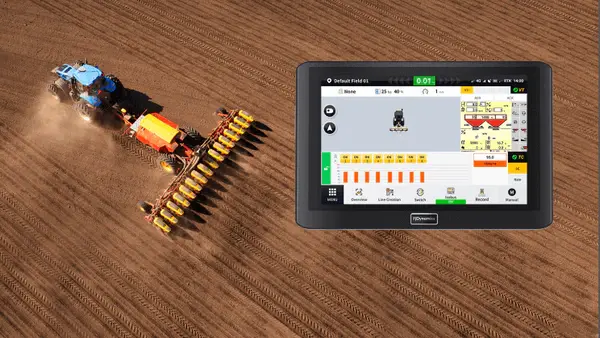

Maximum Display: The 12.1-Inch Advantage
The most immediately noticeable upgrade is the 12.1-inch touchscreen—a 46% increase in visible area compared to the standard AT2 . This isn’t just about size; it’s about usability.
Four-Screen Split View :
The AT2 Max’s innovative 4-split-screen technology allows operators to monitor multiple tasks simultaneously without constantly switching between windows. For example, while planting, you can simultaneously watch:
- Planter spacing via camera feed
- Tractor navigation path
- Fertilizer application rates
- Engine status
No more flipping between apps or missing critical alerts. The enlarged key buttons are designed for gloved hands, preventing accidental presses during busy farm operations .
Full-Screen ISOBUS UT Mode:
When you need to concentrate on implement data, the system supports full-screen ISOBUS Universal Terminal mode, displaying up to 24 sections simultaneously for better visibility and control of your equipment . FJD AT2 Max Auto Steer System
Maximum Processing Power
Under the hood, the AT2 Max runs on a premium CPU with a 170% increase in processing power compared to its predecessor . Backed by 4GB of RAM, this system handles large data loads with ease—smoother operation, quicker reaction times, and faster loading mean less time waiting and more time working .
Centimeter-Level Accuracy: 2.5 cm Precision
The AT2 Max combines GNSS satellite signals with RTK network corrections to achieve ±2.5 cm pass-to-pass accuracy on any terrain . This precision translates directly to your bottom line:
- Minimal overlaps and more efficient field utilization
- Reduced fuel consumption
- Lower use of fertilizers, herbicides, and pesticides
- Ability to work in the dark—accuracy isn’t dependent on daylight
Terrain Compensation: The system maintains accuracy even on sloping or rough terrain, with a wide operating speed range from 0.1 km/h to 26 km/h to handle everything from low-speed potato planting to high-speed crop protection operations . FJD AT2 Max Auto Steer System
Multiple Correction Signal Options
The AT2 Max offers flexibility in how you receive correction signals :
- RTK (Real-Time Kinematic): Achieves 2.5 cm accuracy for high-precision farming needs
- PPP (Precise Point Positioning): Delivers decimeter-level accuracy without internet constraints—ideal for remote areas
- ALS (Autonomous Lost Signal): Maintains navigation continuity for 20 minutes if RTK signals drop, then seamlessly transitions to PPP mode
When RTK signal returns, the system automatically switches back to RTK positioning .
Smart Path Planning for Every Scenario
The AT2 Max offers a comprehensive suite of guidance patterns for virtually any farming scenario :
- FJD AT2 Max Auto Steer System AB Straight Line: The classic straight-line guidance
- FJD AT2 Max Auto Steer System AB Curve Line: Follows curved field boundaries or contours
- FJD AT2 Max Auto Steer System Pivot: Perfect for center-pivot irrigation fields
- FJD AT2 Max Auto Steer System Diagonal Harrowing: Creates perfect diagonal paths for complete field coverage with shortest possible driving distance
- FJD AT2 Max Auto Steer System Headland: Choose full or partial edge (up to 9 paths) for clear inner area and headland display
- FJD AT2 Max Auto Steer System Tramline: Create tramlines in unplanted areas aligned precisely with existing guidance lines
- Line Group: Save completed paths as reusable groups, share with other systems, or import pre-planned paths
- Combination Line: Combine different path types to maximize field coverage
Automatic U-Turn: Smart Turns for Every Field
The AT2 Max takes the stress out of headland turns with two automated options :
Smart U-Turn:
Based on thorough analysis of field boundaries, this feature plans the most suitable path for uninterrupted auto turns and headland closing. Ideal for large fields, it optimizes the complete task and avoids overlaps by skipping worked areas when planning the path .
Basic U-Turn (Ω Shape & Fishtail Shape):
For smaller or irregularly shaped fields, the Ω-shaped path allows for quick, easy turnarounds with ample turning space, while the fishtail-shaped path is optimized for fields with limited turning room .
ISOBUS Integration: Control Everything from One Terminal
The AT2 Max boasts full ISOBUS compatibility, enabling precise and efficient control of multiple implements from a single terminal :
- Virtual Terminal (VT): Streamline operations by managing all ISOBUS-compatible implements from one control terminal
- FJD AT2 Max Auto Steer System Task Controller (TC): Enable precise, automated implement control by scheduling and executing tasks
- FJD AT2 Max Auto Steer System AUX-N: Support for auxiliary control functions
This integration simplifies operations and improves usability—you’re not juggling multiple screens or controllers .
Built for the Farm: IP67 Durability
Farming is tough on equipment. The AT2 Max’s screen is built to withstand the rigors of daily wear and tear with:
- IP67 rating: Fully dust-proof and can withstand temporary immersion in water up to 1 meter deep
- Robust metal casing: Built to last through dust storms, downpours, and accidental dunks
- Redesigned SIM slot: Prevents jamming or misalignment
The system also includes a leather-finished steering wheel for improved comfort, better grip, and superior control compared to standard plastic options .
Easy Installation and Transferability
The AT2 Max is designed as a universal retrofit kit that fits most tractors (20 to 500+ HP) and agricultural machinery, regardless of age or model .
Quick Installation: A skilled installer can complete the entire autopilot system installation in as little as 30 minutes. The process simply involves replacing the steering wheel, installing the screen and antenna, and completing the wiring .
Transferable Between Vehicles: Need to move the system to another vehicle? Simply take it down and quickly install it on another machine. This flexibility maximizes your investment .
Free Software Updates and Future-Proofing
The AT2 Max software is updated frequently, and customers can choose whether to update based on their needs. All updates are completely free of charge . For existing FJD autosteer users, the company offers affordable upgrades to this latest version—a policy that will continue into the future, reducing the time spent familiarizing with newer models .
Why Choose the FJD AT2 Max?
| Feature | Benefit |
|---|---|
| 12.1″ Screen + 4-Split View | Monitor navigation, cameras, implement data, and machine status simultaneously |
| 2.5 cm RTK Accuracy | Eliminate overlaps, reduce input costs, maximize yields |
| Smart U-Turn | Automate headland turns—no manual intervention needed |
| ISOBUS Integration | Control all implements from one screen |
| IP67 Durability | Works reliably in dust, rain, and harsh conditions |
| Universal Fit | Install on any tractor or machine, old or new |
| Transferable | Move the system between vehicles as needed |
| Free Updates | Stay current with the latest features at no cost |
Ready to Upgrade Your Farming Operation?
The FJD AT2 Max Auto Steer System is available for immediate order. Experience the precision, efficiency, and comfort that thousands of farmers worldwide are already enjoying.
Visit www.fj-dynamic.com today to order your system or find a dealer near you.
